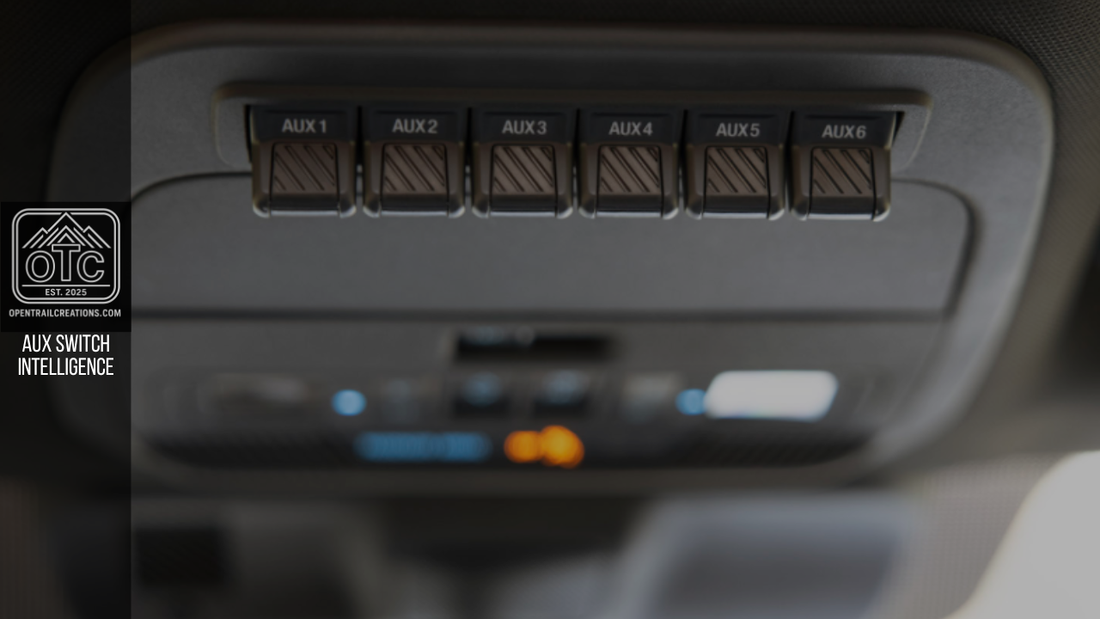

2020+ Super Duty Aux Switch Amp Ratings — 25A vs 40A and What They Really Mean
Share
Quick Summary
For the 2020+ Ford Super Duty trucks currently supported by OTC, factory aux (upfitter) switches have defined circuit ratings:
- Aux switches 1–4 are rated at 25 amps
- Aux switches 5 and 6 are rated at 40 amps
While these ratings define the maximum circuit protection, they do not automatically mean that every component in the power path is rated to carry that current continuously. Understanding the difference between circuit rating, connector ratings, and continuous-duty load is critical for reliable and safe installs.
This guidance applies to Super Duty trucks only. F-150 aux systems use different configurations and should not be assumed to match Super Duty behavior.
Aux Switch Amp Ratings (Super Duty – OTC Supported Years)
For Super Duty trucks in the years currently supported by OTC:
- Aux 1: 25 amp
- Aux 2: 25 amp
- Aux 3: 25 amp
- Aux 4: 25 amp
- Aux 5: 40 amp
- Aux 6: 40 amp
These ratings are based on factory circuit protection and fuse sizing for Super Duty upfitter systems.
Always confirm fuse labeling and upfitter documentation for your specific truck.
Important: Circuit Rating vs Connector Rating
While the factory aux circuits are rated at 25A or 40A, not every connector or interface in the circuit path is designed to carry that level of current continuously.
Many commonly used sealed connectors, including Weather Pack–style connectors used in extension harnesses and interface products, are typically rated at lower continuous current levels (often around 20 amps per contact, depending on configuration and wire gauge).
This means:
- The factory aux circuit may be capable of 40 amps
- A connector or harness in the path may be rated lower
- The lowest-rated component determines the safe continuous current
This distinction is important when adding extension harnesses or interface products.
What the Amp Rating Really Means
An aux switch amp rating reflects the maximum circuit protection, not necessarily what should be used for sustained, continuous load.
High current used continuously can still cause:
- Heat buildup in wiring and connectors
- Voltage drop under load
- Reduced accessory performance
- Long-term stress on connectors and factory circuits
- Premature fuse or connector failure
This is especially important when connectors, extension harnesses, or interface products are part of the circuit.
Continuous vs Intermittent Load (Critical)
Many accessories draw more current at startup and during continuous operation.
Examples include:
- Air compressors
- High-output light bars
- Electric motors and pumps
- Large multi-light setups
Even on a 40 amp aux circuit, sustained continuous load near the circuit limit is not ideal — especially when connectors and harness components are rated for lower continuous current.
Best Practice: Use Relays for High-Current Loads
For higher-current or continuous-duty accessories:
- Use the aux switch to trigger a relay
- Power the accessory directly from the battery
- Protect the accessory with its own appropriately sized fuse
This configuration:
- Reduces load on factory aux wiring
- Keeps high current out of connectors and interface harnesses
- Minimizes voltage drop
- Improves long-term reliability
- Protects factory circuits and interface components
This is the recommended approach for compressors, large lighting systems, and other high-draw accessories.
OTC Product Consideration (Important)
For customers using OTC extension harnesses, no-crimp solutions, and similar interface products:
These products are designed to provide clean factory integration and signal-level power handling. However, sealed connectors such as Weather Pack–style connectors used in harnesses are typically not intended to carry sustained, continuous high-current loads at the full factory circuit rating.
For 40 amp accessories or continuous-duty loads:
- Use a relay
- Power the accessory from a fused battery source
- Use the aux switch and OTC interface as the control signal
This protects:
- Factory wiring
- OTC harness components
- Sealed connectors
- Long-term system reliability
Common Mistakes
- Running continuous high-current loads directly through connectors
- Assuming 40 amp circuit rating applies to every component
- Not accounting for connector and harness ratings
- Skipping relays for large accessories
- Applying Super Duty amp charts to F-150 trucks
These mistakes are a frequent cause of electrical and connector failures.
Important Platform Scope Note
This post applies to:
- 2020+ Ford Super Duty trucks
- OTC-supported Super Duty configurations
F-150 aux systems use different circuit designs, connector layouts, and ratings. Amp values and behavior for F-150 should not be assumed to match Super Duty.
Future OTC Intelligence posts will address F-150 separately.
Sources & References
Discussions and documentation referencing Super Duty aux switch ratings and load behavior:
FordTremor.com — Upfitter confusion and circuit capacity
https://www.fordtremor.com/threads/upfitter-confusion.7104/
Ford-Trucks.com — Super Duty upfitter switch capacity discussions
https://www.ford-trucks.com/forums/1670225-2022-upfitter-switches-dont-have-same-capacity-as-previous-my.html
Ford Fleet Upfitter Documentation (Super Duty)
Official guides outlining aux switch circuits and fuse protection
OTC Perspective
We see most aux switch problems when high-current accessories are run continuously through factory circuits and connectors. Even on 40 amp aux switches, using relays and dedicated battery feeds keeps high current out of sealed connectors and interface harnesses, improving reliability and protecting both factory wiring and OTC products.
